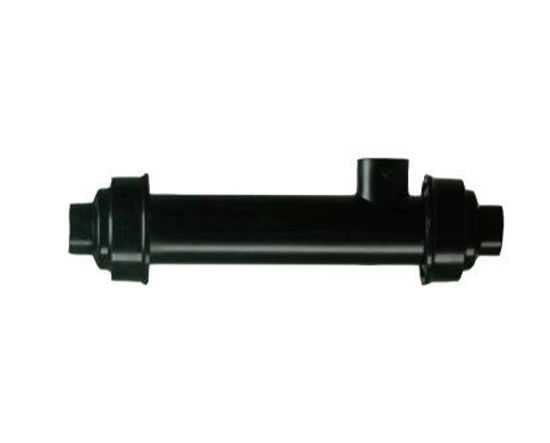

This degassing module is a hollow fiber membrane contactor designed for efficient removal of dissolved gases from ink jet inks on-board ink jet printing systems.
Specifications:
Size : 115 mm x Ø 30 mm (4.53 in x Ø 1.18 in)
Weight : approximately 27g (0.06 lb)
Materials:
Hollow fiber : Poly (4-Methylpenten-1)
Housing : Polypropylene
End cap : Polypropylene
Sealing resin : Epoxy resin
O-ring : EPDM
Surface area of membrane: Approximately 0.06 m2 (0.65 ft2)
Performance of module (with water):
Treated water DO: Less than 0.2 kPa (0.002 bar, 0.029 psi) (Under test conditions)
Pressure drop: Less than 0.2 kPa (0.002 bar, 0.029 psi) (Under test conditions)
Flow rate : 0.5 - 180 ml/min
Use conditions:
Liquid temperature: 5-45°C (41-113 °F)
Maximum liquid pressure (Gauge) : 200kPA (2bar, 29psi)
Vacuum pressure (absolute):
Aqueous liquid: Saturation vapor pressure ~100kPa (1 bar, 14.5 psi)
Non-aqueous liquid: 1 kPa~100kPa (1bar, 14.5 psi)
Operating temperature: 5~45 °C (41~113 °F)
Use/Storage conditions: Keep dry in door with temperature under 45 °C (113 °F). Handle with care. Do not expose to sunlight. Do not freeze remaining water in a module after used for any purpose.
Connecting joint:
Water inlet/outlet : Rc 1/8
Vacuum port: Rc 1/8

Printer compatibility
Acuity LED 1600

Durst Rho 600 Basic
Durst Rho 600 Pictor
Durst Rho 600 Rapid
Durst Rho 800 HS
Durst Rho 800 Presto

EFI Vutek GS2000
EFI Vutek GS2000LX
EFI Vutek GS3200
EFI Vutek GS3250
EFI Vutek GS3250r
EFI Vutek GS5000r
EFI Vutek QS2000
EFI Vutek QS3200
EFI Vutek QS3200r
EFI Vutek QS3220
EFI Vutek QS3250r
