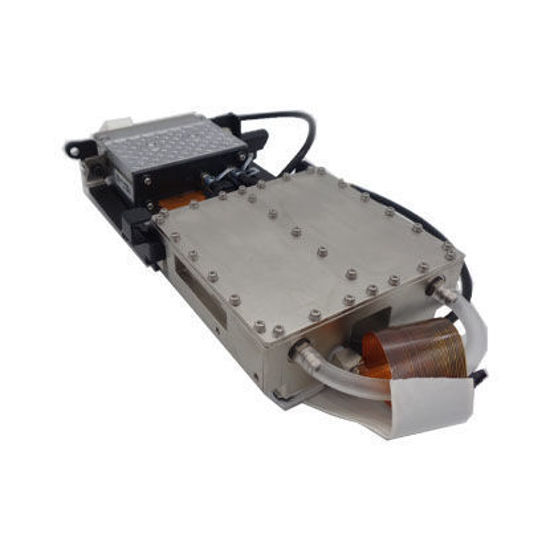

This head assembly is suitable for Mimaki UJF-7151 Plus printers. This is the original Mimaki part (number M017429 replaced by MP-M025074). This head assembly includes brackets, tubes, damper and subtank. We recommend to change the head cables when installing a new printhead.

The following items are expressly excluded from warranty coverage:
defects related, in any way, to the use of non-original inks
clogged, missing or deviated nozzles
defects related to misuse, abuse, accident, neglect, lack of use, or improper storage when not in use for extended periods
defects related to failure to perform periodic maintenance as specified in the user documentation; operation for unintended purposes
defects related to improper loading of media
all other defects, failures or damage not considered manufacturing defects
defects related to third-party applications, software, parts, components, or peripheral devices, including any bulk ink system.
defects that are merely cosmetic in nature

Specifications
Print Method: On-Demand piezo technology
Ink Re-circulation Structure: Ink re-circulation through all channels
Print Width: 53.7mm
Nozzles: 636
Nozzle Resolution: 300npi
Number of Lows: 2
Nozzle Spacing (Row to row distance): 4.64mm
Grayscale Level: 4 levels/0,5,6,7drops
Drop Volume: 57~80pL
Frequency: 4.8kHz/7drops
Power Supply Voltage for Driving the Head: 14~31V
Power Supply Voltage for Driving Circuit: 5V, 39V
Ink Type: UV-curing
Size, Weight: 94.1mm(W)×26mm(D)×79mm(H), 161g
This printhead carries a manufacturer warranty.
Country of origin : Japan

Printer compatibility
Mimaki UJF-7151 Plus
